Description
The blue Honeywell Genesis Category 5e Unshielded Twisted Pair Plenum Communication Cable offers 1000′ of reliable, high-speed connectivity in a convenient reel-in-a-box format. Featuring #24 AWG solid bare copper conductors and 100% FEP insulation, it’s UL rated and ETL Verified to TIA/EIA 568-C Category 5e standards, ensuring optimal performance. The cable includes a LSPVC jacket with a ripcord for easy installation and sequential footage markings for precise management.
Additional information
| Weight | 21.25 lbs |
|---|---|
| Dimensions | 12.28 × 12.28 × 10.63 in |
| Type | 24/4PR CAT5e CMP |
| Voltage Rating | 300V |
| Current | 1.4A |
| DC Resistance | Nominal: 7.6 ohms/100m<br> Maximum: 9.38 ohms/100m |
| Resistance | Unbalance:<br> Nominal: 1.5%<br> Maximum: 5% |
| Capacitance | Nominal: 4.9 nF/100m<br> Maximum: 5.6 nF/100m<br> Unbalance: Nominal: 50 pF/100m<br> Maximum: 330 pF/100m |
| Velocity of Propagation | Nominal: 71% |
| Propagation Delay | Nominal: 505 ns/100m<br> Maximum: 570 ns/100m |
| Delay Skew (ns/100 m) | Nominal: 15 ns/100m<br> Maximum: 45 ns/100m |
| Cable Diameter | 0.2" (0.5 cm) |
| Insulation | 100% FEP |
| Jacket | 24 Solid Bare Copper |
| Minimum Bend Radius | 0.8" (2.03 cm) |
| Pull Strength | 25 lbs (11.33 kg) |
| Cable Length | 1000' (304.8 m) |
Related products
Computer Cables
Computer Cables
Computer Cables

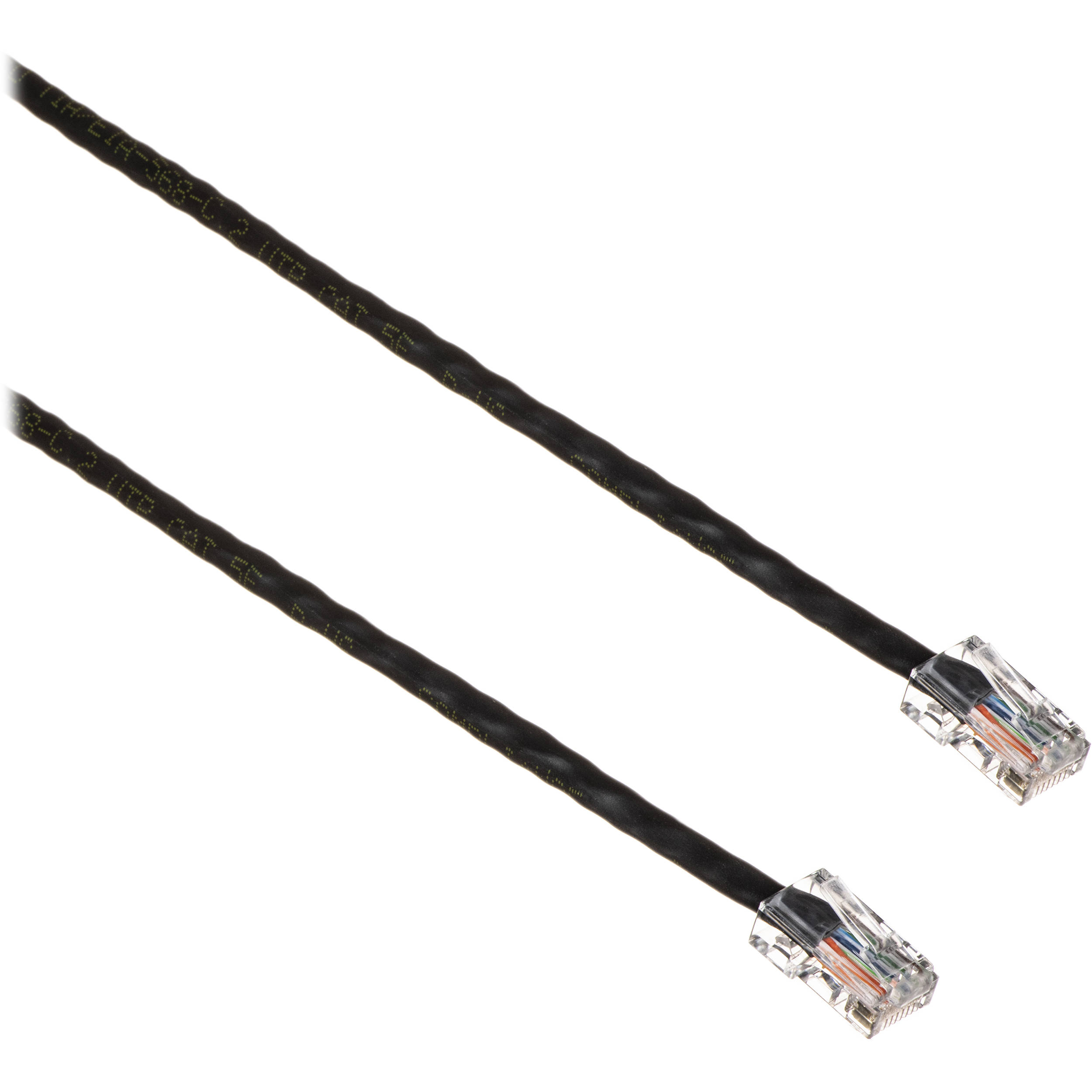

CAT5e 350MHz 1ft Black Assembly Cable – High-Speed Networking
