Description
Fractal Design Ion+ 560P: Unleash Quiet Power
Elevate your PC’s performance with the Fractal Design Ion+ 560P 560W 80 PLUS Platinum Modular Power Supply, engineered for silence and efficiency. This ATX power supply boasts a 140mm fan and innovative Zero RPM mode, ensuring your rig stays cool without the noise.
Key Features:
- High Efficiency: 80 PLUS Platinum certification for reduced power loss and lower electricity bills.

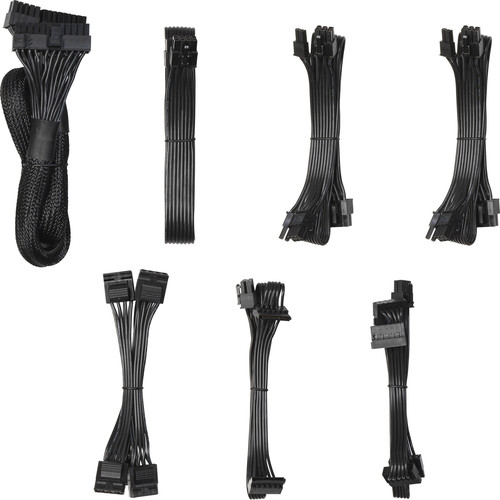

- Modular Design: Fully-modular UltraFlex cables for cleaner builds and improved airflow.

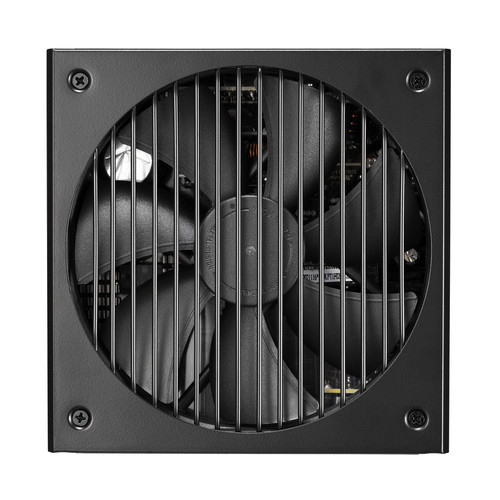

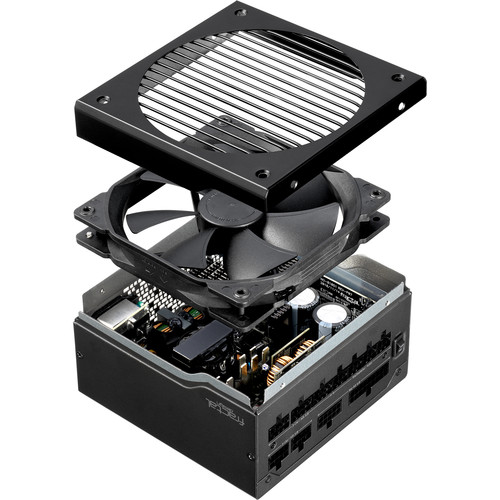

- Quiet Operation: 140mm fan with Zero RPM mode for silent performance under low loads.
- Reliable Power: Single +12V Rail delivering 560W for stable performance.
- Longevity: Up to 100,000 hours lifespan, complying with ATX12V 2.4 and EPS12V 2.92 standards.

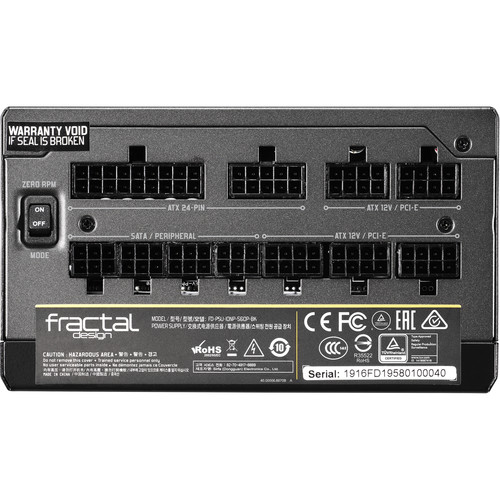

The Fractal Ion+ 560P is designed with flexibility in mind, offering one motherboard connector, one CPU connector, four PCIe connectors, six SATA connectors, and four 4-pin peripheral connectors. The included cable storage pouch and hardware kit with screws and zip ties ensure a tidy and secure installation.
Experience the perfect blend of power, efficiency, and silence with the Fractal Design Ion+ 560P. Ideal for PC enthusiasts and gamers alike, this power supply is a cornerstone for a reliable and high-performance computer system.
Additional information
| Weight | 6.26 lbs |
|---|---|
| Dimensions | 13 × 8.4 × 4.4 in |
| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />6 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 20 A |
| Certifications | BSMI, CB, CCC, CE, EAC, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4, EPS 12 V v2.92 |
| Form Factor | ATX |
| Storage Temperature | 122°F / 50°C |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Size | 140 mm |
| Efficiency Rating | 80 PLUS Platinum |

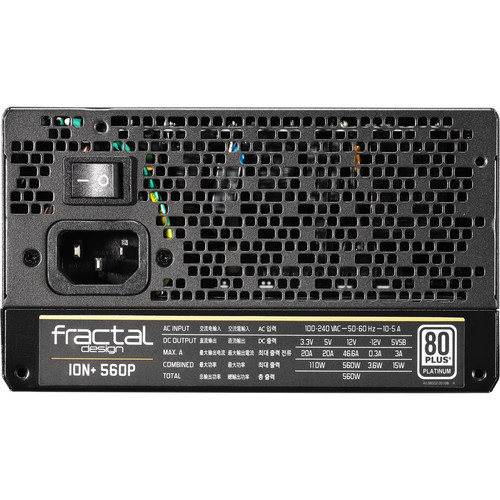

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 20 A |
| Cable Design | Flat, Modular, Sleeved |
| Combined Power for +3.3/+5 V | 110 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 560 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 560 W |
| EPS Connector Distances | 27.6" / 700 mm |
| ATX Connector Distance | 23.6" / 600 mm |
| Peripheral Connector Distances | 15.7" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />25.6" / 650 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
